Four Arm Bi-Axial Machines

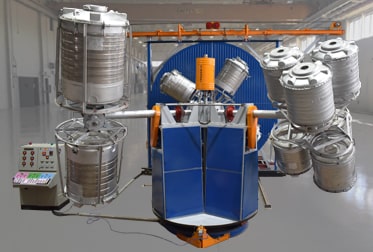

The four arm bi-axial machines fixed turret was developed for rapid and mass production. These machines have an additional station for cooling. They are fuel efficient, high in productivity, require minimum maintenance, and offer economical production. They are the workhorses of the rotational moulding industry.

Dream Machines for water storage tank manufacturers

Available Models :
VI-4-1000×2 |  | VI-4-2000×2 | VI-4-5000 | VI-4-10000

Four arm rotational moulding machines are considered as rotational molding industries workhorse. Always used for manufacturing various capacities or component at a time.Same as three arm heating, cooling and loading cycles function in a synchronized manner to give combination of productivity and fuel efficiency. Four arm machines do give same productivity as three arm but you can mount variety of molds at time on four arm save the time to change the moulds.

We at Vinodrai, add value to these machines by state of art design process. Feedback from our numerous customers helps us to offer better fuel efficiency & productivity. We offer most economical solutions for producing tanks from 1,000 litres to 10,000 litres capacity on our four arm range of machines.

ADDED ADVANTAGES OF FOUR ARM MACHINES
  • Variety of moulds mounting saves time for mold changing.
  • Suitable for two moulds of max capacity molds or four small capacity moulds on all straight arms.
  • Round furnace which gives highest fuel efficiency, compact design.
  • Extra cooling time available in four arm machine.
  • Arm bypass facility available.
  • Two speed for re-circulating blower.
  • Jog function available for indexing major and minor axis.
  • Optional PLC control panel with touch screen available.
HIGHLIGHTS OF PLC CONTROL MACHINES
  • User friendly, no skill manpower require & trouble free operation.
  • Touch screen operation.
  • Temperature profile display.
  • Interlock message display.
  • Graphical display of various functions.
  • Remote support available.
  • Recipe storage up to 100 recipes.
  • Alarm history display.
Four Arm Bi-Axial Machines

It’s industry workhorse with low maintenance and long life.

Flexibility of making variety of tanks.

Great at making insulated, food grade, anti-bacterial tanks.

Vinodrai Offers following types of Four Arm Biaxial Machines

VI-4-1000- FOUR ARM TYPE BI-AXIAL MACHINE

VI-4-1000 – FOUR ARM TYPE BI-AXIAL MACHINE

  • Four arm bi-axial rotational moulding machine.
  • Four straight arms.
  • Capacity straight arm two tank 1000 lit. or four Tank 500 lit., typical cycle time 20 min.
  • Fully automatic Italian burner, diesel or LPG or Natural Gas.
  • Fuel consumption cycle 14.0 litre diesel or 11.9 kg of LPG.
  • Electric load 29 HP.
  • Process temperature 210 °c.
  • Production in 24 hrs. 96,000 lit.
  • Size of machine L 12.0 mtr. x w 11 mtr. x H 6.2 mtr.
Four Arm Bi-Axial Machines

Download Specification

Request for Quote

VI-4-1000x2 - FOUR ARM TYPE BI-AXIAL MACHINE

VI-4-1000×2 – FOUR ARM TYPE BI-AXIAL MACHINE

  • Four arm bi-Axial rotational molding machine.
  • Four straight arms.
  • Capacity straight arm two tank 1000 lit. or four tank 500 lit., typical cycle time 20 min.
  • Fully automatic Italian burner, diesel or LPG or Natural Gas.
  • Fuel consumption cycle 14.0 litre diesel or 11.9 kg of LPG.
  • Electric load 29 HP.
  • Process temperature 210 °C.
  • Production in 24 hrs. 96,000 lit.
  • Size of machine L 12.0 mtr. x W 11 mtr. x H 6.2 mtr.
Four Arm Bi-Axial Machines

Download Specification

Request for Quote

VI-4-2000 - FOUR ARM TYPE BI-AXIAL MACHINE

VI-4-2000 – FOUR ARM TYPE BI-AXIAL MACHINE

  • Four arm bi-axial rotational moulding machine.
  • One offset arm & three straight arms.
  • Capacity L arm one tank 2000 lit., straight arm two tank 1000 lit., or four tank 500 lit.
  • Typical cycle time 30 min.
  • Fully automatic Italian burner, diesel or LPG or Natural Gas.
  • Fuel consumption cycle 14.0 litre diesel or 11.9 kg of LPG.
  • Electric load 28 HP.
  • Process temperature 210 °C.
  • Production in 24 hrs. 1,08,000 lit.
  • Size of machine L 12 mtr x W 11 mtr x H 5.8 mtr.
Four Arm Bi-Axial Machines

Download Specification

Request for Quote

VI-4-2000x2 - FOUR ARM TYPE BI-AXIAL MACHINE

VI-4-2000×2 – FOUR ARM TYPE BI-AXIAL MACHINE

  • Four arm bi-axial rotational molding machine.
  • Four straight arms.
  • Capacity straight arm two tank 2000 lit. or four tank 1000 lit.,typical cycle time 30 min.
  • Fully automatic Italian burner, diesel or LPG or Natural Gas.
  • Fuel consumption cycle 18.0 litre diesel or 16 kg of LPG.
  • Electric load 44 HP.
  • Process temperature 210° C.
  • Production in 24 hrs. 1,30,000 lit.
  • Size of machine L 14 mtr x W 11 mtr x H 7 mtr.
Four Arm Bi-Axial Machines

Download Specification

Request for Quote

VI-4-5000 - FOUR ARM TYPE BI-AXIAL MACHINE

VI-4-5000 – FOUR ARM TYPE BI-AXIAL MACHINE

  • Four arm bi-axial rotational moulding machine.
  • One offset arm & three straight arms.
  • Capacity L arm one tank 5000 lit., straight arm two tank 2500 lit., or four tank 1000 lit.
  • Typical cycle time 40 min.
  • Fully automatic Italian burner, diesel or LPG or Natural Gas.
  • Fuel consumption cycle 28.0 litre diesel or 24 kg of LPG.
  • Electric load 41 HP.
  • Process temperature 210 °C.
  • Production in 24 hrs. 1,60,000 lit.
  • Size of machine L 17.5 mtr x W 13.2 mtr x H 7.2 mtr.
Four Arm Bi-Axial Machines

Download Specification

Request for Quote

VI-4-10000 - FOUR ARM TYPE BI-AXIAL MACHINE

VI-4-10000 – FOUR ARM TYPE BI-AXIAL MACHINE

  • Four arm bi-Axial rotational molding machine.
  • Four straight arms.
  • Capacity straight arm two tank 5000 lit. or four tank 1000 lit., typical cycle time 40 min.
  • Fully automatic Italian burner, diesel or LPG or Natural Gas.
  • Fuel consumption cycle 38.0 litre diesel or 32.3 kg of LPG.
  • Electric load 56 HP.
  • Process temperature 210 °C.
  • Production in 24 hrs. 2,40,000 lit.
  • Size of machine L 25 mtr x W 16.5 mtr x H 10 mtr.
Four Arm Bi-Axial Machines

Download Specification

Request for Quote
